Field of View

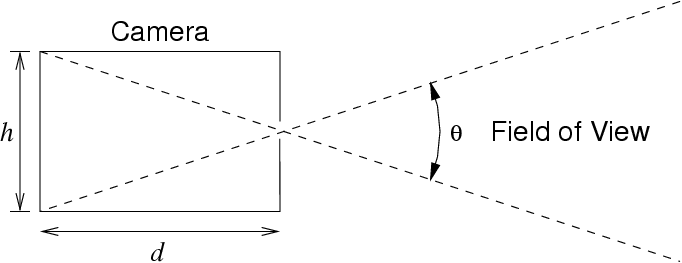

The field of view is determined by the size of the film plane and the distance d. If θ is the FOV angle and h is the film plane height then

tan(θ/2) = h/(2d)       which gives       θ = 2 tan−1(h/(2d)).
